Debunking 4 Common Misconceptions About Carbon Fiber! Conductive Shielding Water-Resistant Corrosion-Resistant

Debunking 4 Common Misconceptions About Carbon Fiber! Conductive? Shielding? Water-Resistant? Corrosion-Resistant?

From lightweight automotive components and high-end sports equipment to critical structural parts in aerospace, carbon fiber has long captured public attention with its "light as a feather, strong as steel" properties. Yet as its popularity grows, questions about its characteristics multiply: Some claim "carbon fiber conducts electricity, so phone cases made from it block signals," while others worry "carbon fiber fears water and will break in the rain." while others wonder, "Is it more corrosion-resistant than metal?"

These seemingly simple questions reveal the core logic behind carbon fiber's material properties—it is neither a "universal material" nor burdened by the numerous "taboos" rumored to exist. Today, we'll address the four most pressing questions in plain language, breaking down the principles and providing answers grounded in real-world applications to help you truly understand carbon fiber!

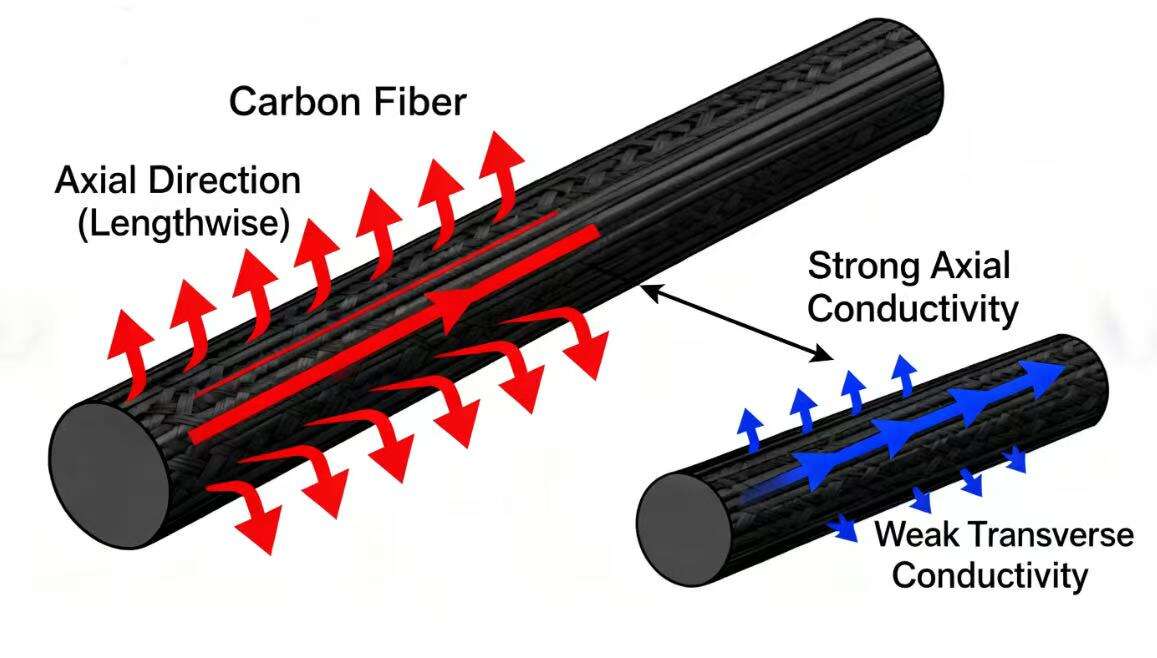

Q1：Did you hear that carbon fiber is conductive?

A1：Yes, it conducts electricity along the fiber axis, but it's not like metal!

Many people mistakenly believe carbon fiber is an "insulating material," but pure carbon fiber itself possesses excellent electrical conductivity—this stems from its molecular structure: carbon fiber forms a graphite-like structure where carbon atoms are arranged in a hexagonal ring network. Free electrons can move freely within the conjugated π bonds, akin to having a "highway" for electrons, thus enabling conductivity.

However, its conductivity differs significantly from metals like copper or aluminum:

(1) Directional conductivity: Carbon fiber exhibits stronger conductivity along its axial direction (lengthwise) and weaker conductivity transversely (diameter direction), whereas metals conduct electricity isotropically;
(2) Slightly lower conductivity efficiency: Carbon fiber resistivity ranges from 10⁻³ to 10⁻⁴ Ω·m (varying by specification), far exceeding copper (1.72×10⁻⁸ Ω·m), making it unsuitable as a direct metal wire substitute;
(3) Composite materials may be insulating: Most "carbon fiber products" we encounter daily (e.g., carbon fiber racquets, automotive components) are actually "carbon fiber reinforced composites" (CFRP). If the matrix is an insulating material like epoxy resin and the carbon fibers do not form a continuous conductive network, the composite may exhibit insulating or semiconducting properties overall.
Practical Applications: Leveraging its conductivity, carbon fiber can be used to manufacture anti-static flooring and electromagnetic shielding materials. By controlling fiber content, insulating carbon fiber composites can also be produced to meet diverse application requirements.

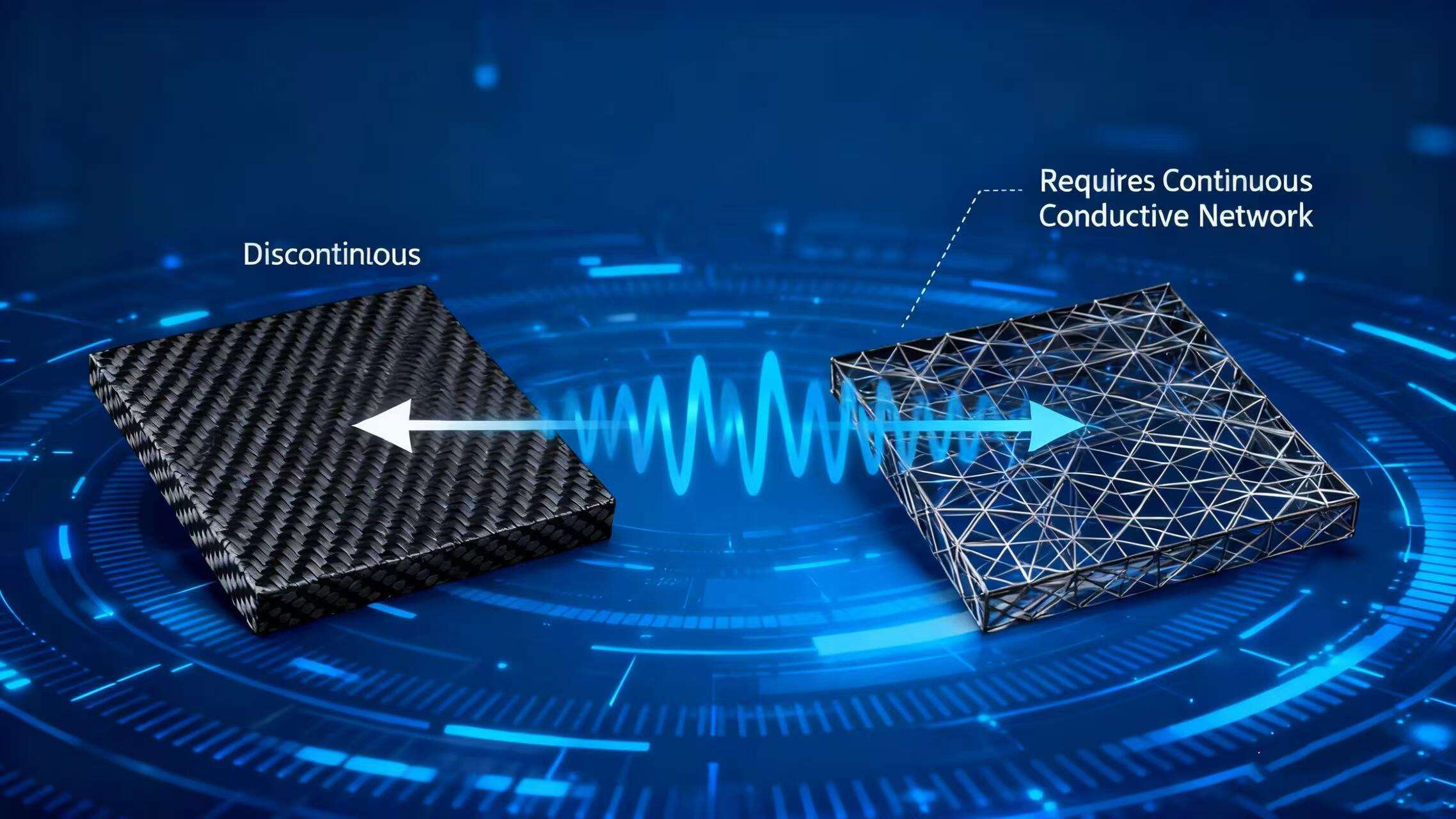

Q2：Can it shield signals like metal?

A2:Yes, but it requires the formation of a continuous conductive network.

The core principle of electromagnetic shielding is "forming an enclosed cavity with conductive materials to reflect, absorb, or guide electromagnetic waves to ground." Metal serves as an excellent shielding material because it is a continuous conductor capable of comprehensively blocking electromagnetic waves.

Whether carbon fiber can shield signals hinges on whether it forms a continuous conductive path:
(1) Pure carbon fiber / high-content continuous carbon fiber products: Achieve certain shielding effectiveness! For example, components made from pure carbon fiber fabrics or carbon fiber prepregs form a continuous conductive network through fiber interweaving, reflecting some electromagnetic waves. Shielding effectiveness (SE) typically ranges from 30 to 60 dB (sufficient for general industrial and civilian applications), though slightly lower than metals (60 to 100 dB+).
(2) Low-content / Discrete carbon fiber composites: If carbon fibers are merely "dispersed" within an insulating matrix without forming a continuous network, they function like "broken wires" and offer almost no shielding capability;
(3) Enhancement solutions: Applying a metallic coating to the composite surface or incorporating conductive fillers (e.g., carbon nanotubes) can significantly boost the shielding performance of carbon fiber products, even approaching metal levels.
For example: A carbon fiber phone case made from high-content continuous carbon fiber fabric may slightly weaken signals (though not affecting normal use); whereas a standard carbon fiber reinforced plastic (CFRP) case, due to dispersed fibers, has virtually no impact on signal reception.

Q3：Is carbon fiber material "afraid of water"?

A3:Pure carbon fiber is not a concern; composite materials depend on the matrix and protection.

First, let's clarify: Pure carbon fiber itself is not afraid of water! Carbon fiber has a stable chemical structure that does not react with water. It will not rust or degrade when submerged, and even in underwater environments (such as deep-sea equipment or underwater robots), pure carbon fiber serves as an excellent structural material.

However, the "carbon fiber products" (composite materials) we commonly encounter may be "afraid of water."

The core issue lies in the matrix material and the interface bonding:
(1) If the composite matrix is epoxy resin, polyester resin, etc., prolonged immersion allows water to gradually penetrate the resin interior or the fiber-resin interface, leading to:
1) Resin swelling and aging, reducing material strength;
2) Fiber-resin delamination (interface failure), causing "delamination";
(2) Specially treated composites are "water-resistant": By waterproofing the resin, applying water-repellent coatings (e.g., polyurethane, fluorocarbon coatings) to the product surface, or using matrices with superior water resistance (e.g., polyetheretherketone PEEK), carbon fiber composites can maintain stability in humid environments or even during prolonged immersion.

Usage Recommendations: - Avoid prolonged exposure to rain or immersion for general carbon fiber products (e.g., backpacks, sports rackets). - For outdoor or underwater applications (e.g., paddles, diving equipment), select specialized waterproof-grade products.

Q4：How corrosion-resistant is it?

A4："Resistant to chemical corrosion" but "vulnerable to high-temperature oxidation"!

Carbon fiber exhibits outstanding overall corrosion resistance, with its core advantage stemming from the stable structure of carbon atoms:
(1) Resistance to acid and alkali corrosion: At room temperature, carbon fiber withstands erosion from common acid and alkali solutions such as hydrochloric acid, sulfuric acid, and sodium hydroxide. Unlike metals, it does not undergo electrochemical corrosion, making it widely used in chemical equipment (e.g., pipelines for corrosive media transport, reactor vessel linings).
(2) Resistance to organic solvent corrosion: Carbon fiber is insoluble in most organic solvents like alcohol, acetone, and gasoline, and does not degrade even with prolonged exposure;
(3) Weakness: Susceptibility to High-Temperature Oxidation: This is carbon fiber's sole "corrosion vulnerability"—in air, temperatures exceeding 400°C cause carbon fiber to react with oxygen (C + O₂ = CO₂), leading to gradual oxidation, weight loss, and strength reduction. However, in inert gas environments (e.g., nitrogen) or vacuum conditions, it remains stable even at extremely high temperatures (over 1000°C).

Additional note: Carbon fiber itself is not susceptible to high-temperature oxidation, as its primary component is carbon, enabling it to withstand temperatures above 1800°C in oxygen-free environments. However, carbon fiber composites are vulnerable to high-temperature oxidation because the resin matrix used oxidizes and fails in oxygen-containing environments above 400°C, thereby compromising the entire material's performance. In oxygen-containing environments, carbon fiber itself has a temperature tolerance of 300°C-400°C.

The corrosion resistance of carbon fiber composites is similarly influenced by the matrix. If the matrix resin lacks corrosion resistance (e.g., standard polyester resin), prolonged exposure to corrosive media will cause resin failure, thereby compromising overall performance. Consequently, carbon fiber composites used in chemical processing must incorporate corrosion-resistant resin matrices (e.g., vinyl ester resins, modified epoxy resins).

The essence of carbon fiber material properties lies in the principle that "structure determines performance." Understanding these characteristics is key to leveraging its advantages effectively—neither overhyping its "universal applicability" nor misunderstanding its "limitations." If you'd like to explore specific applications (such as carbon fiber in electronics or outdoor gear), feel free to leave a comment below!
