Attributes
Weight: 48g/80g/110/130/160/198/200/300/400 g/m2
Resin: Please refer to the resin parameter
Note:
1. Normally Regularly on Stock
2. MOQ and production details have to be discussed
3. Weight and Weave Pattern(plain/twill/satin/UD/jacquard/hybrid)can be customized

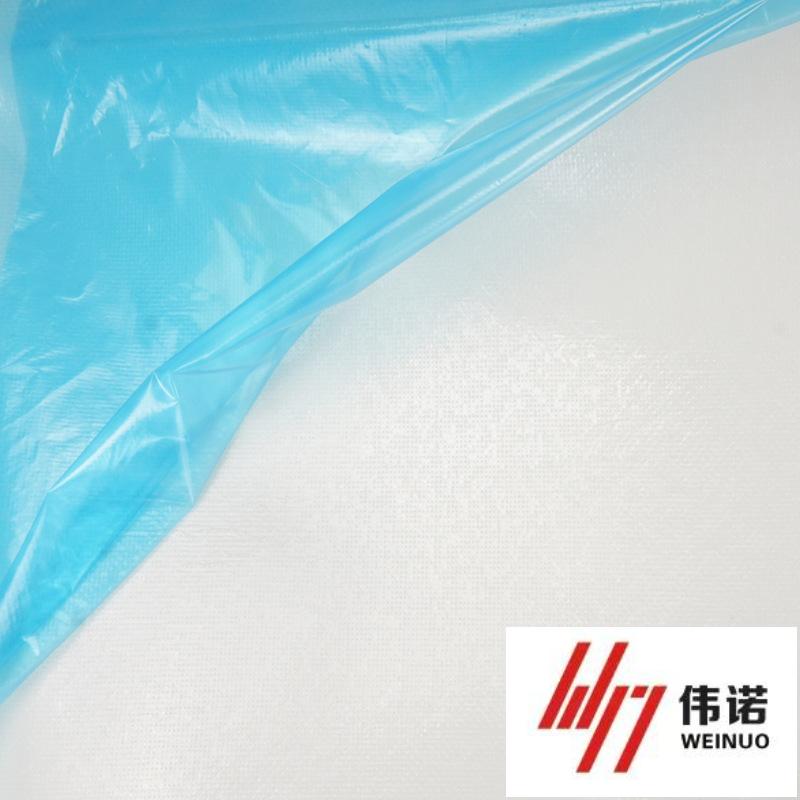

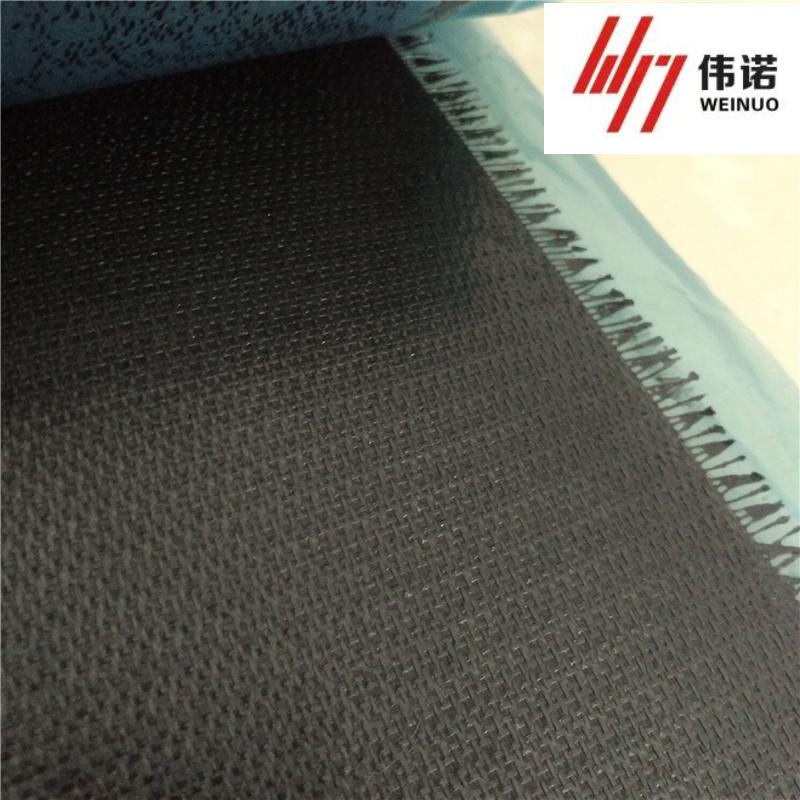

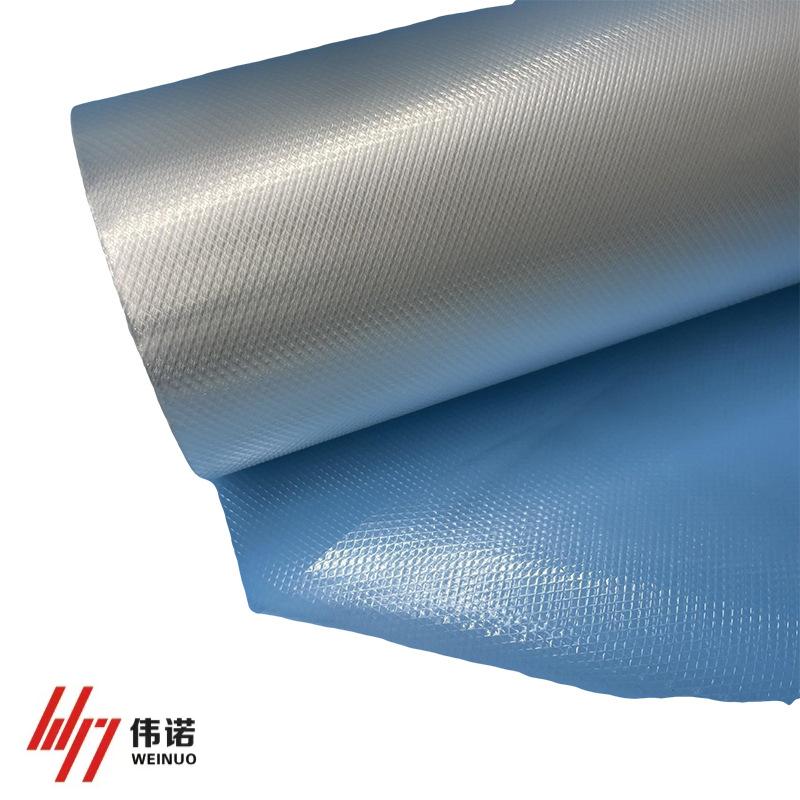

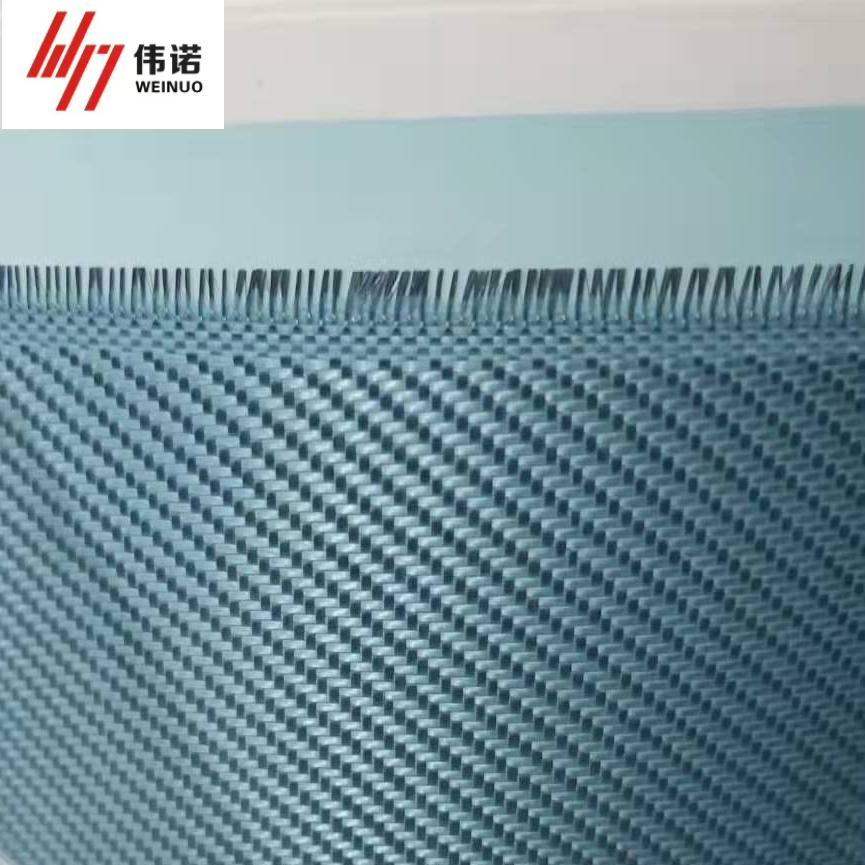

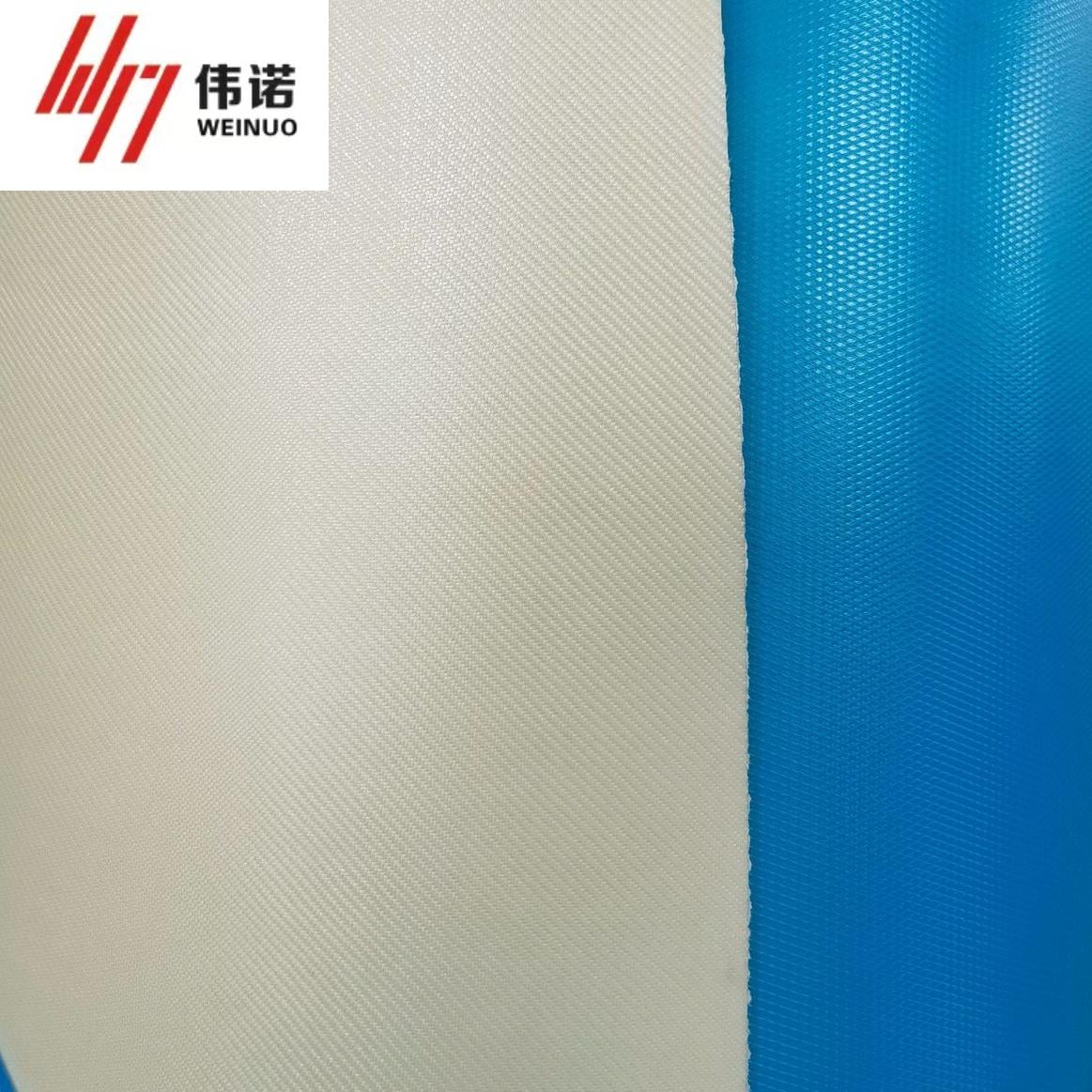

Fiberglass prepreg is a composite material where glass fibers are pre-impregnated with resin. It combines the strength of glass fibers with resin’s bonding, offering good mechanical performance and corrosion resistance. Easy to shape, it’s widely used in industries needing cost-effective reinforcement.
Keywords：Fiberglass prepreg、composite material、glass fibers、resin、strength、bonding、mechanical performance、corrosion resistance
Description
| FOB Price: Contact us for pricing | Port: NINGBO, SHANGHAI. |
| Brand: WeiNuo | Delivery:7-30 days after confirmation |
| Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L | |
| Shipping: EMS, FedEx, DHL, UPS, By Air/Sea/Train | |
Fiberglass prepreg features glass fibers saturated with a controlled amount of resin, ready for curing under heat and pressure. This pre-impregnation ensures uniform fiber-resin distribution, reducing waste and improving product consistency. With balanced strength, rigidity, and affordability, it’s ideal for applications like marine parts, industrial tanks, and electrical enclosures.
Feature：
Consistent performance：
Pre-impregnated resin ensures uniform fiber coverage, leading to stable mechanical properties across products.
Cost-effective reinforcement：
Offers reliable strength at a lower cost compared to carbon fiber prepregs, suitable for budget-sensitive projects.
Versatile processability：
Easily molded into complex shapes under heat and pressure, adapting to diverse manufacturing needs.
Application：
Marine industry：
Used in boat hulls and decks, leveraging corrosion resistance and structural strength in water environments.
Industrial equipment：
Applied in chemical tanks and pipes, withstanding corrosive substances while maintaining rigidity.
Electrical engineering：
Utilized in insulation panels and circuit board substrates, combining electrical insulation and mechanical support.
Specification:
| Weinuo Composites Epoxy Resin Systems | ||
| Resin Model | Resin Characteristics | Application Areas |
| WP~B1268 | Low temperature curing down to 80°C/3h is possible. | Low temperature curing or products with low temperature resistant cores, etc. |
| WP~H1655 | High temperature resistance, Tg can reach 178℃. | High-end carbon fibre wheels |
| WP~H2002 | High temperature resistance, Tg can reach 200℃. | Carbon fibre wheels, aerospace and other components |
| WP-H2002N | High temperature resistance, TG 210°C | Ultra-high temperature resistant epoxy series |
| WP~L1600 | Low-temperature curing for large-size, ultra-thick products. | Oversized parts such as wind turbine girder plates |
| WP-L1230 | Fast curing at 120°C for 30min | 3C industry, low-temperature and fast products. |
| WP~L5100 | Fast curing at 150°C/10min | Rapid curing products for drone paddles, shoe materials, automotive parts, etc. |
| WP~L5107 | 140℃/6min fast curing | 3C industry, products such as ultra-fast requirements, unfavorable transportation |
| WP~R1200 | Production of ultra-low gram prepregs | High-end carbon fiber rods, minimum 10 grams of prepreg |
| R1312(Winter) | Production of conventional 100 and 150 gram prepregs | Low-cost formulations for drone platens, fishing rods, tubing, etc. |
| R1312 | Production of conventional 100 and 150 gram prepregs | Drone platens, fishing rods, pipe industry, summer formulas |
| R1360 | Toughened resin, elongation at break can reach 5%, impact strength 72KJ/㎡. | Drones, baseball industry, products with high toughness requirements |
| R5600W3K | 3K apparent resin, clear, no white spots | Automotive parts, coil industry, exterior parts |
| R5601W3K | 3K apparent resin, transparent, no white spots, excellent workability | Automotive parts, coil industry, exterior parts |
| R5603W3K-F | 3K apparent resin, highly transparent, no white spots, Tg＞110°C | Automotive components, coil industry, high-end exterior parts |
| S1001 | Low viscosity standard epoxy | Carbon fiber rods, reels, high-end sporting goods |
| S3001 | Medium Viscosity Standard Epoxy | Carbon fiber rods, reel industry, high-end sporting goods |
| S5000 | High viscosity standard epoxy with excellent overall performance | High-end sporting goods, military products |
| S5001 | High viscosity standard epoxy with excellent overall performance | Carbon fiber bicycle, badminton, hiking poles, high-end fishing gear and other industries |
| S5001-Y | High-viscosity standard epoxy, tackified version, excellent overall performance | Carbon fiber bicycle, hiking poles, high-end sporting goods and other industries |
| S5003 | High viscosity standard epoxy, fast reaction speed, excellent overall performance | High-end carbon fiber products and products with a fast production tempo |
| S5100 | Medium to high viscosity standard epoxy, fast reaction speed, cost-effective | Lightweight products with low resin content, excellent maneuverability |
| S6000 | Ultra-high viscosity standard epoxy with excellent overall performance | M40/and above modulus fiber |
| CFR02-2 | High viscosity standard epoxy, fast reaction speed, excellent overall performance | High-end carbon fiber badminton racket and other products |
| R2600 | Low viscosity, fast response time | Molded sheets, shoe materials, golf clubs and other industries |
| 2100 | Halogen-free flame retardant, DIN5510 | Rail transportation, military products |
| WN-2120-1 | 150℃/5min curing 94V0 grade halogenated flame retardant | Battery box cover, 3C industry |
| 2201（100℃） | EN45545 R1 HL2 class flame retardant | Rail transportation, military products |
| 2201（120℃） | EN45545 R1 HL2 class flame retardant | rapid transit |
| 2201（150℃） | EN45545 R1 HL3 class flame retardant | rapid transit |
| 1072 | Halogenated 94V0 flame retardant | Industries requiring flame retardant and non-white appearance |
| 1076 | Halogen-free 94V0 flame retardant | 3C industry, high-end flame retardant products |
| B1280 | Low temperature 80 degrees curing halogen-free flame retardant, halogen-free 94V0 flame retardant | Low temperature curing flame retardant field |
| 1125 | Transparent resin with good adhesion, for winter use | Transparent products such as automobile exterior parts |
| R1208 | Small Gram Prepreg, Low Halogen | 3C industry |
| 1216 | Yellowing resistance, high transparency | Photovoltaic industry |
| S1087 | High modulus prepreg, resin modulus close to 3.5G | Bicycle industry |
