How to Troubleshoot Common Issues When Working with Carbon Fiber Prepreg?

Working with carbon fiber prepreg materials requires precision, expertise, and careful attention to detail throughout the manufacturing process. This advanced composite material offers exceptional strength-to-weight ratios and superior performance characteristics, making it invaluable in aerospace, automotive, and high-performance applications. However, even experienced professionals encounter challenges when handling carbon fiber prepreg, from storage and handling issues to curing defects and quality control problems. Understanding how to identify, prevent, and resolve these common issues is essential for achieving consistent, high-quality results in composite manufacturing operations.

Understanding Carbon Fiber Prepreg Material Properties

Composition and Structure Fundamentals

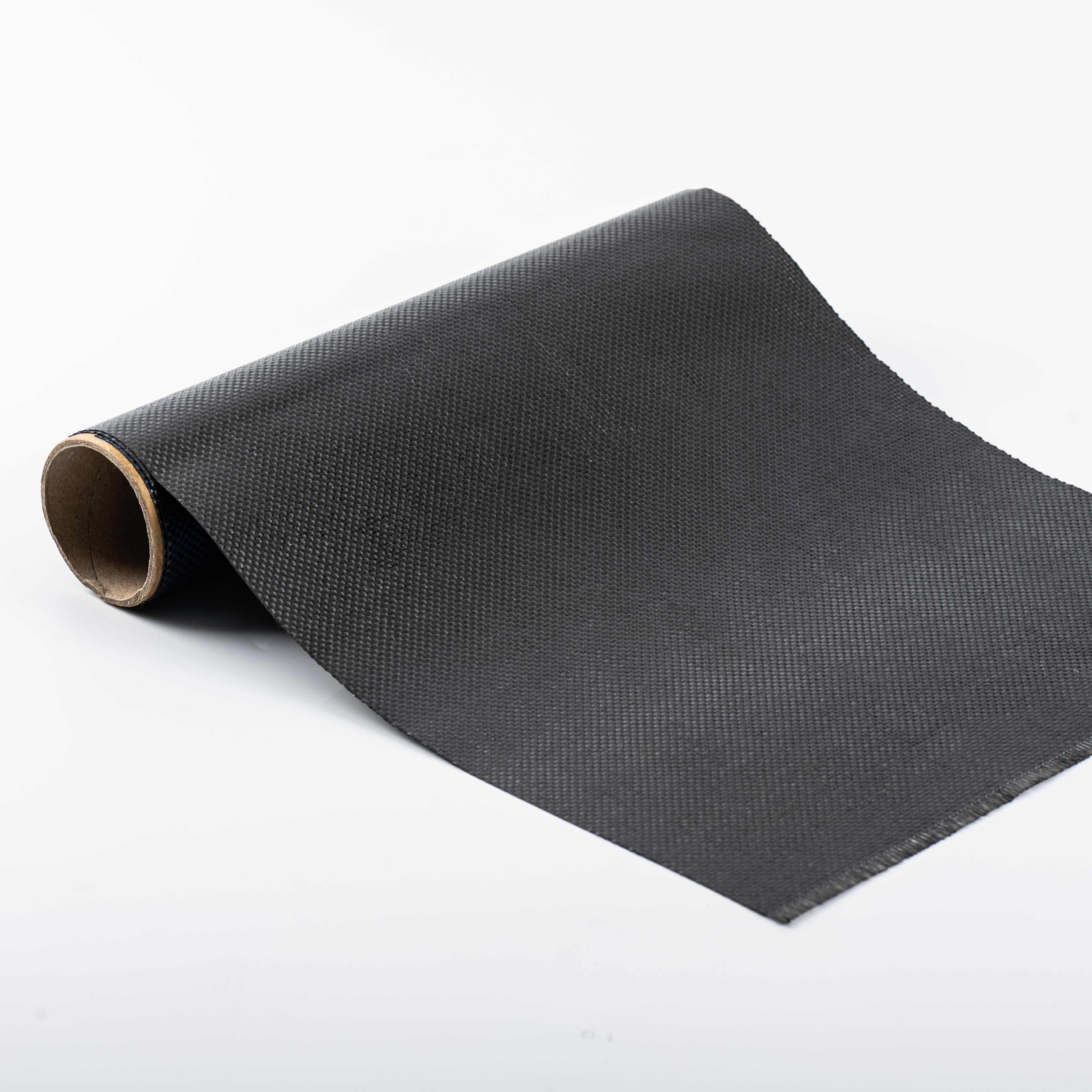

Carbon fiber prepreg consists of carbon fiber reinforcement impregnated with a partially cured resin system, typically epoxy, that remains stable at room temperature but cures when exposed to elevated temperatures. The resin content, fiber orientation, and areal weight are critical parameters that directly impact the final composite properties. Understanding these fundamental characteristics helps troubleshoot issues related to inconsistent mechanical properties, processing difficulties, and quality variations in finished parts.

The resin system in carbon fiber prepreg materials undergoes a controlled advancement process during manufacturing, resulting in a B-stage cure state that provides handleability while maintaining flow characteristics during the final curing process. This delicate balance between workability and reactivity creates specific requirements for storage, handling, and processing that must be carefully managed to prevent common issues such as premature curing, inadequate flow, or incomplete consolidation.

Critical Storage and Handling Parameters

Proper storage conditions are fundamental to maintaining carbon fiber prepreg quality and preventing deterioration that leads to processing problems. Temperature control represents the most critical factor, with most prepreg materials requiring storage at sub-zero temperatures, typically between -18°C to -10°C, to extend out-life and prevent premature advancement of the resin system. Inadequate temperature control results in reduced tack, shortened working time, and potential curing issues during processing.

Moisture protection plays an equally important role in prepreg storage, as absorbed moisture can cause voids, surface defects, and dimensional instability during curing. Proper packaging with moisture barrier films and desiccant materials helps maintain material integrity. Additionally, the first-in-first-out inventory rotation system ensures materials are used within their specified out-life periods, preventing issues associated with aged or degraded prepreg that may exhibit poor handling characteristics or incomplete curing.

Identifying and Resolving Processing Defects

Surface Quality and Consolidation Issues

Poor surface quality in carbon fiber prepreg laminates often stems from inadequate consolidation during the lay-up process or insufficient pressure application during curing. Wrinkles, bridging, and surface irregularities typically occur when prepreg materials are not properly conformed to complex geometries or when inappropriate consolidation techniques are employed. Proper debulking procedures between each ply application, combined with adequate pressure application using consolidation tools, helps eliminate entrapped air and ensures intimate contact between layers.

Void formation represents another common consolidation issue that significantly impacts mechanical properties and appearance quality. These defects often result from insufficient vacuum pressure, inadequate venting, or rapid temperature ramp rates that cause volatile evolution faster than removal through the vacuum system. Implementing proper bagging techniques, strategic placement of breather materials, and controlled heating rates during the initial stages of the cure cycle helps minimize void formation and improve overall laminate quality.

Dimensional Control and Warpage Prevention

Dimensional instability and warpage in cured carbon fiber prepreg parts frequently occur due to asymmetric lay-up schedules, inadequate tooling design, or inappropriate cure cycle parameters. Symmetric and balanced laminate constructions help minimize internal stresses that cause distortion during cooling from cure temperature. When asymmetric constructions are necessary for design requirements, strategic placement of constraint tooling and careful temperature control during cooling phases can help manage dimensional changes.

Thermal expansion coefficient mismatches between the composite part and tooling materials can also contribute to dimensional issues and part distortion. Understanding these relationships and selecting appropriate tooling materials, such as carbon fiber or invar steel for high-precision applications, helps maintain dimensional accuracy throughout the manufacturing process. Additionally, implementing controlled cooling rates and proper part support during the cooling phase prevents stress concentrations that lead to warpage or cracking.

Optimizing Cure Cycle Parameters

Temperature Profile Development

Developing appropriate cure cycle temperature profiles for carbon fiber prepreg requires careful consideration of resin chemistry, part geometry, and tooling thermal mass. Insufficient cure temperatures result in incomplete cross-linking, reduced mechanical properties, and potential long-term durability issues. Conversely, excessive temperatures or rapid heating rates can cause resin degradation, volatile formation, or thermal stress-induced defects. Systematic temperature profiling using thermocouples placed throughout the part and tooling assembly helps optimize heating rates and temperature uniformity.

The initial heating phase requires particular attention, as this period determines resin flow characteristics and consolidation quality. Controlled heating rates, typically 1-3°C per minute, allow adequate time for resin flow and air evacuation while preventing excessive volatile generation. Understanding the specific viscosity profile of the resin system helps optimize this critical phase and ensures proper consolidation before gelation occurs.

Pressure Application and Timing

Proper pressure application timing and magnitude significantly impact the quality of carbon fiber prepreg laminates. Applying full pressure too early in the cure cycle, before adequate resin flow has occurred, can result in resin-rich or resin-starved areas, fiber waviness, and incomplete consolidation. Conversely, delayed pressure application may result in void formation and poor interlaminar properties due to insufficient consolidation during the critical flow period.

The magnitude of applied pressure must balance the need for consolidation with the risk of fiber distortion or excessive resin removal. Typical autoclave pressures range from 85-690 kPa, depending on part geometry, fiber architecture, and resin system requirements. For complex geometries or thick sections, stepped pressure profiles may be necessary to achieve uniform consolidation without creating defects such as fiber wrinkling or resin starvation in critical areas.

Quality Control and Inspection Techniques

Non-Destructive Evaluation Methods

Implementing comprehensive non-destructive evaluation techniques helps identify defects in carbon fiber prepreg components before they reach service applications. Ultrasonic inspection methods effectively detect delaminations, voids, and porosity within the laminate structure, providing quantitative data on defect size and location. Pulse-echo and through-transmission techniques offer different capabilities for various part geometries and thickness ranges, enabling thorough inspection of complex carbon fiber prepreg assemblies.

Radiographic inspection techniques, including conventional X-ray and computed tomography, provide detailed internal views of carbon fiber prepreg structures, revealing defects such as foreign object inclusion, ply misalignment, and dimensional variations. These methods prove particularly valuable for thick sections or complex geometries where ultrasonic inspection may be limited. Additionally, thermographic inspection can identify subsurface defects and bonding issues by detecting thermal conductivity variations within the composite structure.

Mechanical Testing and Validation

Systematic mechanical testing programs validate the performance of carbon fiber prepreg laminates and help identify processing issues that may not be apparent through visual or non-destructive inspection methods. Tensile, compression, and flexural testing provide fundamental strength and stiffness data that can be compared to baseline values to assess process consistency and material quality. Variations in mechanical properties often indicate processing problems such as inadequate cure, contamination, or improper fiber orientation.

Interlaminar shear strength testing specifically evaluates the quality of bonding between carbon fiber prepreg plies, making it particularly sensitive to processing issues such as contamination, inadequate pressure, or cure cycle problems. Short beam shear tests provide rapid screening capabilities, while more sophisticated test methods such as Mode I and Mode II fracture toughness testing offer detailed characterization of interlaminar properties for critical applications.

Troubleshooting Environmental and Contamination Issues

Moisture Management Strategies

Moisture contamination represents one of the most persistent challenges in carbon fiber prepreg processing, affecting both material properties and processing characteristics. Atmospheric moisture can be absorbed by both the fiber reinforcement and resin matrix, leading to void formation during curing as trapped moisture vaporizes and expands. Implementing controlled humidity environments, typically maintaining relative humidity below 50%, helps minimize moisture uptake during material handling and lay-up operations.

Pre-drying procedures for carbon fiber prepreg materials that have been exposed to ambient conditions can help remove absorbed moisture and restore processing characteristics. However, these procedures must be carefully controlled to prevent premature advancement of the resin system while effectively removing moisture. Vacuum drying at moderate temperatures, typically 40-60°C, provides effective moisture removal while minimizing the risk of resin advancement.

Contamination Prevention and Clean Room Practices

Surface contamination from oils, dust, release agents, or other foreign materials can severely impact the bonding characteristics of carbon fiber prepreg laminates, leading to delaminations, reduced mechanical properties, and surface defects. Implementing clean room practices, including controlled access, appropriate clothing requirements, and regular cleaning procedures, helps minimize contamination risks during material handling and processing operations.

Tool preparation and maintenance procedures play critical roles in preventing contamination that affects carbon fiber prepreg processing. Proper cleaning protocols using appropriate solvents, followed by controlled application of release agents, ensure consistent part release without compromising surface quality. Regular inspection and maintenance of processing equipment, including vacuum systems, heating elements, and pressure application devices, prevent contamination from degraded components or accumulated residues.

Advanced Processing Considerations

Complex Geometry Manufacturing

Manufacturing complex geometries with carbon fiber prepreg materials presents unique challenges that require specialized techniques and careful process control. Sharp radius sections, complex contours, and varying thickness transitions can lead to fiber wrinkling, bridging, and consolidation issues if not properly managed. Implementing strategic ply termination schedules, appropriate consolidation sequences, and specialized tooling concepts helps achieve high-quality results in challenging geometries.

Multi-stage forming processes may be necessary for extremely complex shapes, allowing progressive conformance to the final geometry while maintaining fiber orientation and avoiding defects. These approaches require careful coordination of intermediate cure states, handling procedures, and quality control measures to ensure consistent results throughout the forming sequence.

Automation and Process Control Integration

Modern carbon fiber prepreg manufacturing increasingly relies on automated systems for material handling, lay-up, and processing control. These systems offer improved consistency, reduced labor costs, and enhanced quality control capabilities. However, they also introduce new troubleshooting challenges related to equipment calibration, programming accuracy, and sensor reliability. Regular maintenance and calibration procedures ensure automated systems maintain accuracy and prevent systematic defects.

Process monitoring and control systems provide real-time feedback on critical parameters such as temperature, pressure, and vacuum levels during carbon fiber prepreg processing. Data logging capabilities enable detailed analysis of processing conditions and correlation with quality outcomes, supporting continuous improvement efforts and rapid identification of process deviations that may lead to defects.

FAQ

What causes delamination in carbon fiber prepreg laminates and how can it be prevented

Delamination in carbon fiber prepreg laminates typically results from contamination between plies, inadequate consolidation pressure, or improper cure cycle parameters. Prevention strategies include maintaining clean handling procedures, applying appropriate consolidation pressure during lay-up, ensuring proper vacuum bag integrity, and following recommended cure cycle profiles. Surface preparation and controlled storage conditions also play critical roles in preventing delamination issues.

How do I determine if carbon fiber prepreg material has exceeded its usable life

Carbon fiber prepreg material that has exceeded its usable life typically exhibits reduced tack, difficulty in handling, shortened working time at room temperature, or incomplete curing characteristics. Physical indicators include dry or brittle appearance, separation of resin from fibers, or unusual odors. Laboratory testing methods such as differential scanning calorimetry can provide quantitative assessment of resin advancement and remaining reactive potential.

What are the most effective methods for removing wrinkles from carbon fiber prepreg during lay-up

Wrinkle removal in carbon fiber prepreg requires immediate attention during lay-up operations. Effective methods include using heated tools to increase material conformability, applying localized pressure with consolidation rollers or tools, strategic trimming and overlapping techniques for severe cases, and adjusting material orientation to better match part geometry. Prevention through proper material handling, sequential ply application, and appropriate environmental conditions proves more effective than correction after wrinkles form.

How can I optimize autoclave cure cycles for thick carbon fiber prepreg laminates

Optimizing autoclave cure cycles for thick carbon fiber prepreg laminates requires careful consideration of thermal mass, heat transfer limitations, and resin flow characteristics. Key strategies include implementing slower heating rates to ensure temperature uniformity, using stepped cure profiles with intermediate holds to allow heat equilibration, monitoring internal temperatures with embedded thermocouples, and adjusting pressure application timing to accommodate extended resin flow periods. Thermal modeling and empirical testing help validate cure cycle effectiveness for specific thickness ranges and part geometries.
