Carbon fiber technology has revolutionized manufacturing across numerous industries, with the specific weave patterns of carbon fabrics playing a crucial role in determining the final product's performance characteristics. Understanding the different types of carbon fabric weaves is essential for engineers, manufacturers, and designers who need to select the optimal material configuration for their specific applications. Each weave pattern offers unique properties in terms of strength, flexibility, drapability, and aesthetic appeal, making the selection process critical for achieving desired performance outcomes.
Fundamental Characteristics of Carbon Fabric Weaves
Structural Properties and Performance Impact
The weave pattern of carbon fabric directly influences its mechanical properties, including tensile strength, stiffness, and impact resistance. Different carbon fabric weaves exhibit varying degrees of fiber orientation, crimp angles, and interlacement patterns that affect how loads are distributed throughout the material. The crimp in woven fabrics, where fibers bend over and under each other, can reduce the ultimate tensile strength compared to unidirectional materials but provides enhanced damage tolerance and ease of handling during manufacturing processes.
Manufacturing considerations also play a significant role in weave selection, as certain patterns offer better drapability for complex geometries while others provide superior surface finish quality. The choice of carbon fabric weaves impacts resin flow during composite manufacturing, void content, and the final part's dimensional stability. Understanding these fundamental characteristics enables manufacturers to optimize their material selection for specific performance requirements and production constraints.
Fiber Architecture and Mechanical Performance
The architecture of carbon fabric weaves determines how individual carbon fibers interact within the textile structure, affecting both in-plane and out-of-plane mechanical properties. Tight weaves with high crimp angles may reduce fiber straightness but improve shear properties and damage tolerance. Conversely, looser weaves maintain better fiber alignment but may be more susceptible to handling damage during processing.
The balance between warp and weft directions in various carbon fabric weaves influences the material's biaxial properties and its ability to withstand multi-directional loading. This architectural consideration becomes particularly important in applications where the composite structure must resist complex stress states or where weight optimization is critical. The interplay between fiber count, tow size, and weave pattern creates unique property combinations that can be tailored to specific application requirements.
Plain Weave Carbon Fabrics
Construction and Characteristics
Plain weave represents the most fundamental carbon fabric weave pattern, where each warp fiber alternately passes over and under each weft fiber in a simple one-over-one pattern. This creates the highest number of interlacement points per unit area, resulting in excellent stability and relatively uniform properties in both directions. Plain weave carbon fabrics typically exhibit good damage tolerance due to the frequent fiber crossovers that help distribute loads across the fabric structure.
The high crimp inherent in plain weave construction can reduce the ultimate mechanical properties compared to other carbon fabric weaves, but this trade-off is often acceptable given the enhanced handling characteristics and manufacturing reliability. Plain weave fabrics demonstrate excellent draping capabilities for moderately complex geometries while maintaining good dimensional stability during processing. The uniform appearance and tight weave structure make plain weave carbon fabrics popular for visible applications where aesthetic quality is important.
Applications and Performance Considerations
Plain weave carbon fabrics find extensive use in aerospace applications where damage tolerance and reliable manufacturing processes are paramount. The balanced properties in both warp and weft directions make these materials ideal for structural components subjected to multi-directional loading conditions. Automotive applications benefit from the excellent surface finish achievable with plain weave fabrics, particularly in visible carbon fiber components where appearance quality is critical.
Sporting goods manufacturers frequently select plain weave carbon fabrics for applications requiring good impact resistance and handling durability. The relatively high resin content required due to the crimp can actually benefit some applications by providing enhanced matrix-dominated properties such as compression strength and environmental resistance. However, weight-critical applications may favor other weave patterns that offer better strength-to-weight ratios.
Twill Weave Carbon Fabrics
Two-by-Two Twill Construction
Twill weave patterns in carbon fabrics are characterized by a diagonal ribbing pattern created when warp fibers pass over or under two or more weft fibers in a regular sequence. The most common configuration is the 2x2 twill, where each warp fiber passes over two weft fibers, then under two weft fibers, creating the distinctive diagonal pattern. This weave structure reduces the number of interlacement points compared to plain weave, resulting in lower crimp and potentially higher mechanical properties.
The reduced crimp in twill carbon fabric weaves allows fibers to maintain straighter paths, leading to improved tensile properties and stiffness compared to plain weave fabrics of similar weight. The diagonal pattern also provides enhanced drapability, making twill weaves particularly suitable for forming complex three-dimensional shapes without excessive wrinkling or bridging. This improved formability often translates to better surface quality and fewer manufacturing defects in molded parts.
Variations and Specialized Applications
Beyond the standard 2x2 twill, manufacturers produce various twill configurations including 2x1, 4x4, and asymmetric patterns that offer different property combinations. These variations in carbon fabric weaves allow engineers to fine-tune material characteristics for specific applications. Harness satin weaves, technically a variation of twill patterns, further reduce crimp by having each fiber pass over multiple fibers before interlacing, maximizing fiber straightness and mechanical properties.
High-performance applications in aerospace and automotive industries often utilize twill weave carbon fabrics where the combination of good mechanical properties and excellent drapability is essential. The distinctive appearance of twill weaves also makes them popular for decorative applications where the visible weave pattern adds aesthetic value. Racing applications benefit from the optimal balance of strength, weight, and manufacturability that twill weaves provide.
Satin Weave Carbon Fabrics
Advanced Weave Architecture
Satin weave carbon fabrics represent the most sophisticated standard weave pattern, featuring long fiber floats where each warp fiber passes over several weft fibers before interlacing. Common configurations include 5-harness, 8-harness, and 12-harness satin weaves, with the number indicating how many fibers each yarn passes over before interlacing. This architecture minimizes crimp to the greatest extent among woven carbon fabrics, resulting in optimal mechanical properties and fiber utilization.
The extended float lengths in satin carbon fabric weaves create a smooth surface with excellent aesthetic qualities and superior mechanical properties. However, this same characteristic can make satin weaves more susceptible to handling damage and may require more careful processing procedures. The reduced number of interlacement points can also affect the fabric's ability to maintain its geometry during resin infusion or prepreg layup operations.
High-Performance Applications
Satin weave carbon fabrics are primarily selected for applications where maximum mechanical performance is required, such as aerospace primary structures, high-end automotive components, and professional racing equipment. The superior strength-to-weight ratio achieved through minimal crimp makes satin weaves ideal for weight-critical applications where every gram matters. The smooth surface finish also benefits applications requiring aerodynamic efficiency or premium appearance quality.
Advanced manufacturing processes like resin transfer molding and autoclave curing work particularly well with satin weave fabrics due to their uniform thickness and predictable resin flow characteristics. However, the premium cost and specialized handling requirements limit their use to applications where the performance benefits justify the additional expense. Careful consideration of processing parameters and quality control measures becomes essential when working with these high-performance carbon fabric weaves.
Specialized and Hybrid Weave Patterns
Unidirectional and Non-Crimp Fabrics
While technically not traditional weaves, unidirectional carbon fabrics and non-crimp fabrics represent important categories within carbon fabric weaves that deserve consideration. Unidirectional fabrics maintain all fibers in a single direction, eliminating crimp entirely and maximizing properties in the primary load direction. These materials are often combined with woven backing or cross-plies to create hybrid structures that optimize performance for specific loading conditions.
Non-crimp fabrics use stitching or bonding to hold multiple fiber orientations together without the traditional over-under weaving pattern. This approach maintains fiber straightness while providing multi-directional reinforcement, making these materials popular for applications requiring tailored property combinations. The absence of crimp in these carbon fabric weaves can result in up to 20% higher mechanical properties compared to equivalent woven materials.
Custom and Application-Specific Patterns
Modern manufacturing capabilities enable the production of custom carbon fabric weaves tailored to specific application requirements. These may include variable density patterns, hybrid fiber compositions, or specialized architectures designed for particular loading conditions. Three-dimensional weaving techniques create preforms that eliminate traditional layup operations while providing through-thickness reinforcement.

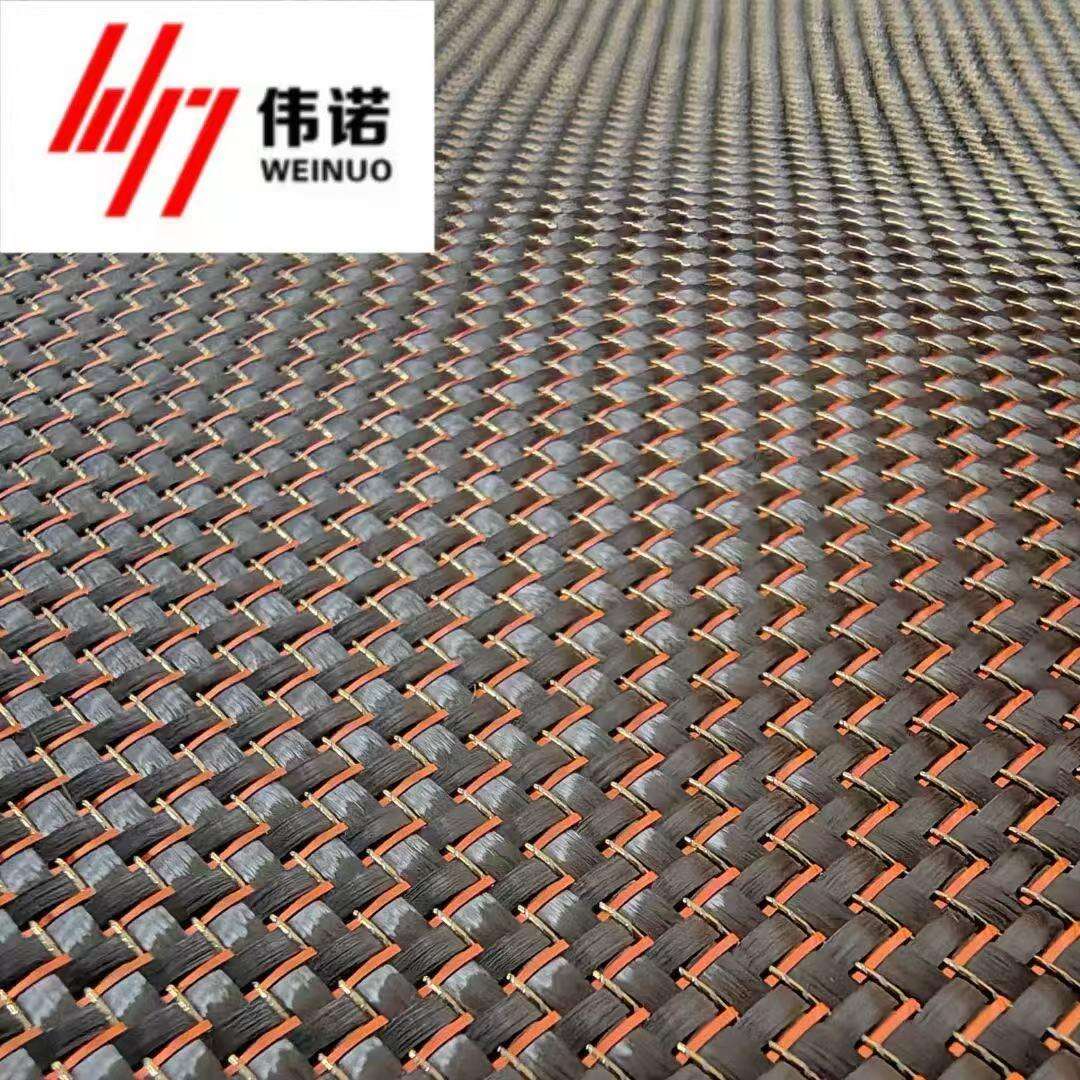

Specialized patterns such as basket weave, mock leno, and crowfoot configurations offer unique property combinations for niche applications. These innovative carbon fabric weaves often target specific manufacturing challenges or performance requirements that standard patterns cannot adequately address. The development of new weave patterns continues to expand the possibilities for optimizing composite material performance across diverse industries.
Selection Criteria and Design Considerations
Performance Requirements Analysis
Selecting the appropriate carbon fabric weaves requires careful analysis of the intended application's performance requirements, manufacturing constraints, and cost considerations. Primary loading conditions, environmental exposure, and service life expectations all influence the optimal weave pattern choice. Engineers must balance mechanical properties against factors such as drapability, surface finish quality, and manufacturing complexity.
The design process should consider both static and dynamic loading conditions, as different carbon fabric weaves respond differently to fatigue, impact, and environmental stresses. Damage tolerance requirements may favor certain weave patterns that provide better crack arrest properties, while stiffness-critical applications may prioritize patterns with minimal crimp. Understanding these trade-offs enables optimal material selection for specific performance targets.
Manufacturing Process Compatibility
The chosen manufacturing process significantly influences the suitability of different carbon fabric weaves, as each pattern responds differently to various molding and curing techniques. Hand layup processes may benefit from the drapability of twill weaves, while automated fiber placement systems might require the dimensional stability of plain weave materials. Resin transfer molding applications must consider fabric permeability and flow characteristics that vary among different weave patterns.
Quality control requirements and defect sensitivity also factor into weave selection decisions. Some carbon fabric weaves are more forgiving of processing variations, while others require precise control of temperature, pressure, and timing parameters. The complexity of the part geometry and required surface finish quality further influence the optimal choice among available weave options. Manufacturers must evaluate their process capabilities and quality requirements when selecting carbon fabric weaves for production applications.
FAQ
What is the strongest type of carbon fabric weave pattern?
Satin weaves typically provide the highest mechanical properties due to their minimal crimp, which allows carbon fibers to remain straighter and carry loads more efficiently. However, unidirectional carbon fabrics offer the absolute highest strength in a single direction by eliminating crimp entirely. The choice depends on whether multi-directional properties or maximum unidirectional strength is required for the specific application.
How does weave pattern affect the cost of carbon fabric materials?
Plain weave carbon fabrics are generally the most economical due to simpler manufacturing processes and higher production volumes. Twill weaves typically cost slightly more due to increased manufacturing complexity, while satin weaves command premium pricing due to specialized processing requirements and lower production volumes. Custom or specialized weave patterns represent the highest cost category due to their limited production and specialized applications.
Can different carbon fabric weaves be combined in a single composite part?
Yes, combining different carbon fabric weaves in a single part is a common practice called hybrid construction. This approach allows designers to optimize properties by placing high-performance satin weaves in critical load areas while using more economical plain weaves in less critical regions. The combination must consider compatibility of fiber types, resin systems, and thermal expansion characteristics to prevent delamination or other manufacturing defects.
Which carbon fabric weave is best for visible decorative applications?
Twill weaves, particularly 2x2 twill patterns, are most popular for visible applications due to their distinctive diagonal pattern and excellent surface finish quality. Satin weaves provide the smoothest surface but may lack the visual interest that many decorative applications require. Plain weaves offer a classic checkerboard appearance but may show more texture variations that could affect the final aesthetic quality of the finished part.
