What Are the Advantages of Using Carbon Fabric in Lightweight Structural Components?

Modern engineering demands materials that combine exceptional strength with minimal weight, driving the aerospace, automotive, and marine industries toward advanced composite solutions. Carbon fabric has emerged as a revolutionary material that transforms how engineers approach lightweight structural component design. This innovative textile-based carbon fiber solution offers unprecedented strength-to-weight ratios while maintaining flexibility in manufacturing applications. Engineers worldwide are discovering that carbon fabric provides the perfect balance between structural integrity and weight reduction, making it indispensable for next-generation component development.

Understanding Carbon Fabric Technology

Material Composition and Structure

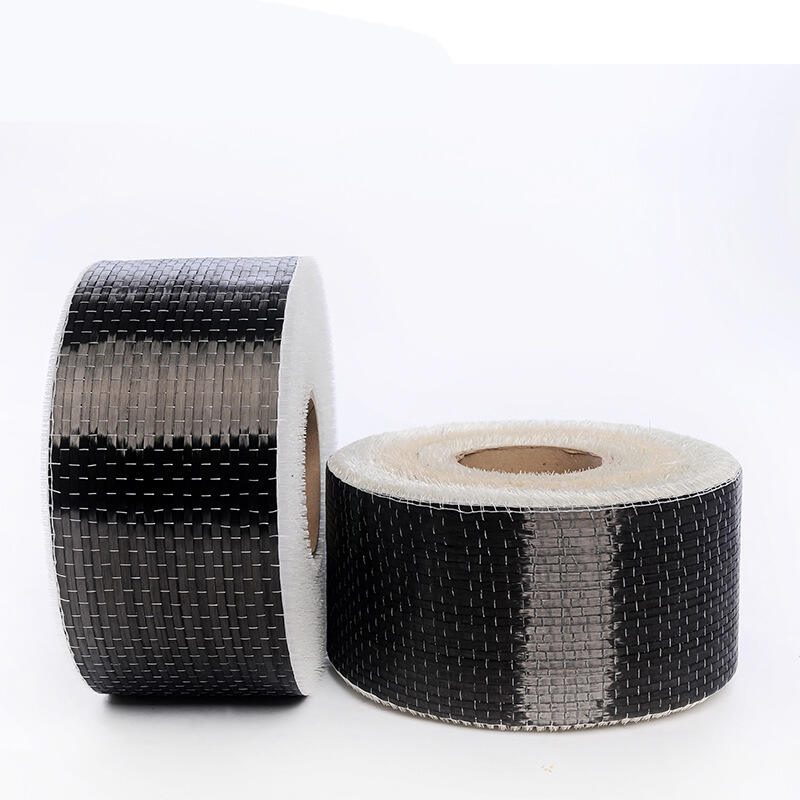

Carbon fabric consists of thousands of carbon fibers woven together in various patterns to create a flexible textile material. Each individual carbon fiber measures only 5-10 micrometers in diameter, yet possesses tensile strength exceeding that of steel. The weaving process arranges these fibers in bidirectional patterns, typically plain weave, twill weave, or satin weave configurations. This textile structure allows carbon fabric to conform to complex geometries while maintaining its inherent strength properties.

The manufacturing process begins with polyacrylonitrile (PAN) precursor fibers that undergo oxidation and carbonization at temperatures exceeding 1000°C. This thermal treatment removes non-carbon elements and aligns the carbon atoms in a crystalline structure. The resulting carbon fibers exhibit exceptional stiffness, low thermal expansion, and excellent fatigue resistance. When woven into fabric form, these properties translate into a versatile material suitable for structural applications.

Weave Patterns and Their Applications

Different weave patterns offer distinct advantages for specific structural applications. Plain weave carbon fabric provides excellent stability and crimp uniformity, making it ideal for applications requiring consistent mechanical properties in both warp and fill directions. The tight weave structure maximizes fiber-to-resin contact, ensuring optimal load transfer throughout the composite structure.

Twill weave patterns create a diagonal fiber orientation that enhances drapeability and conformability around complex shapes. This weave style reduces stress concentrations at fiber crossover points, improving the fatigue life of structural components. Satin weaves offer superior surface finish and reduced crimp, resulting in higher fiber volume fractions and improved mechanical properties for critical load-bearing applications.

Superior Strength-to-Weight Performance

Mechanical Property Advantages

Carbon fabric delivers exceptional mechanical properties that surpass traditional materials in lightweight structural applications. The tensile strength of high-grade carbon fabric can reach 4,000-7,000 MPa, approximately five times stronger than steel while weighing 75% less. This remarkable strength-to-weight ratio enables engineers to design components that meet stringent load requirements without compromising weight targets.

The elastic modulus of carbon fabric typically ranges from 200-400 GPa, providing exceptional stiffness for structural applications. This high modulus prevents excessive deflection under load, maintaining dimensional stability in critical components. Additionally, carbon fabric exhibits excellent fatigue resistance, withstanding millions of load cycles without significant degradation in mechanical properties.

Load Distribution Characteristics

The woven structure of carbon fabric creates a continuous load path that efficiently distributes stresses throughout the component. Unlike traditional materials that rely on bulk properties, carbon fabric transfers loads through individual fiber networks, minimizing stress concentrations. This distributed loading mechanism enhances overall structural integrity and prevents catastrophic failure modes.

Multi-directional fiber orientation in woven carbon fabric provides tailored strength properties that can be optimized for specific loading conditions. Engineers can select appropriate weave patterns and fiber orientations to maximize strength in primary load directions while maintaining adequate properties in secondary directions. This design flexibility allows for highly efficient structural optimization.

Manufacturing Versatility and Process Advantages

Moldability and Complex Geometry Capability

Carbon fabric excels in manufacturing applications requiring complex three-dimensional shapes and intricate geometries. The textile nature of the material allows it to drape around compound curves, sharp radii, and complex contours that would be impossible with rigid materials. This moldability enables the production of lightweight structural components with optimized shapes for aerodynamic efficiency and space utilization.

Advanced manufacturing techniques such as resin transfer molding (RTM) and vacuum-assisted resin transfer molding (VARTM) leverage the permeability characteristics of woven carbon fabric. The spaces between fiber tows create flow channels that facilitate resin infiltration, ensuring complete wet-out and void-free laminates. This manufacturing advantage results in consistently high-quality components with predictable mechanical properties.

Processing Temperature and Cure Considerations

Carbon fabric maintains dimensional stability throughout various processing temperatures, from room temperature wet lay-up procedures to elevated temperature autoclave curing. This thermal stability allows manufacturers to select optimal curing conditions for specific resin systems without concern for fabric distortion or property degradation. The low coefficient of thermal expansion ensures minimal residual stresses in cured components.

The compatibility of carbon fabric with multiple resin systems, including epoxy, vinyl ester, and thermoplastic matrices, provides manufacturing flexibility. Different resin combinations offer tailored properties for specific applications, from high-temperature aerospace components to chemical-resistant marine structures. This versatility enables manufacturers to optimize material selection for diverse operational requirements.

Chemical and Environmental Resistance

Corrosion Immunity and Durability

Unlike metallic materials, carbon fabric exhibits complete immunity to electrochemical corrosion, making it ideal for harsh environmental applications. This corrosion resistance eliminates the need for protective coatings, surface treatments, or regular maintenance associated with metal components. Structural components manufactured from carbon fabric maintain their mechanical properties throughout extended service lives, even in corrosive marine or chemical processing environments.

The chemical inertness of carbon fibers provides excellent resistance to acids, bases, solvents, and other aggressive chemicals. This resistance ensures long-term structural integrity in applications exposed to chemical environments that would rapidly degrade conventional materials. Additionally, carbon fabric components do not exhibit galvanic corrosion when in contact with dissimilar metals, simplifying assembly and joint design.

Temperature Stability and Thermal Properties

Carbon fabric maintains its structural properties across an extensive temperature range, from cryogenic conditions to elevated temperatures exceeding 200°C in air. This thermal stability makes it suitable for applications experiencing significant temperature variations or extreme operating conditions. The low coefficient of thermal expansion minimizes thermal stresses and dimensional changes that could compromise component integrity.

The excellent thermal conductivity of carbon fabric provides efficient heat dissipation in applications requiring thermal management. This property enables the design of lightweight heat exchangers, electronic enclosures, and thermal interface components that combine structural capability with thermal performance. The thermal properties can be tailored through fabric architecture and fiber orientation to optimize heat transfer characteristics.

Cost-Effectiveness and Lifecycle Benefits

Long-Term Economic Advantages

While the initial material cost of carbon fabric may exceed traditional alternatives, the long-term economic benefits justify the investment in lightweight structural applications. The exceptional durability and corrosion resistance eliminate recurring maintenance costs associated with metal components. Additionally, the weight reduction achieved through carbon fabric implementation results in operational savings through reduced fuel consumption in transportation applications.

The extended service life of carbon fabric components reduces replacement frequency and associated downtime costs. Many carbon fabric structures exhibit service lives exceeding 20-30 years with minimal maintenance requirements. This longevity, combined with consistent performance throughout the service life, provides superior return on investment compared to traditional materials requiring frequent replacement or refurbishment.

Manufacturing Efficiency Considerations

Carbon fabric manufacturing processes often require fewer production steps compared to metallic fabrication techniques. The near-net-shape molding capability eliminates extensive machining operations, reducing manufacturing time and waste material. Additionally, the consolidation of multiple metal components into single carbon fabric structures simplifies assembly procedures and reduces inventory requirements.

The design flexibility offered by carbon fabric enables weight and part count reduction that translates directly into cost savings. Engineers can optimize component geometry for specific loading conditions, eliminating unnecessary material and reducing overall system complexity. This optimization capability frequently results in significant cost reductions despite higher material costs.

Applications Across Industries

Aerospace and Aviation Implementation

The aerospace industry has embraced carbon fabric technology for primary and secondary structural components in both commercial and military aircraft. Wing panels, fuselage sections, control surfaces, and interior components manufactured from carbon fabric deliver substantial weight savings while meeting stringent safety and performance requirements. The fatigue resistance and damage tolerance of carbon fabric structures ensure reliable operation throughout demanding flight profiles.

Satellite and spacecraft applications leverage the dimensional stability and low outgassing properties of carbon fabric for precision structural components. The material's resistance to radiation damage and thermal cycling makes it ideal for space environments where repair or replacement is impossible. Launch vehicle applications benefit from the high strength-to-weight ratio for payload optimization and structural efficiency.

Automotive and Transportation Applications

The automotive industry increasingly incorporates carbon fabric components to achieve fuel efficiency targets and performance objectives. Body panels, chassis components, drive shafts, and suspension elements manufactured from carbon fabric reduce vehicle weight while maintaining structural integrity and crash performance. The design flexibility enables integration of multiple functions into single components, reducing complexity and assembly time.

Railway and marine transportation applications benefit from the corrosion resistance and durability of carbon fabric structures. Train car bodies, marine hull components, and propulsion system elements withstand harsh operating environments while delivering weight savings that improve operational efficiency. The low maintenance requirements reduce lifecycle costs in applications where accessibility for service is limited.

Future Developments and Innovations

Advanced Fiber Technologies

Ongoing research in carbon fiber production continues to enhance the properties and reduce the cost of carbon fabric materials. Next-generation precursors and processing techniques promise to deliver higher strength and modulus values while improving manufacturing efficiency. Advanced fiber surface treatments enhance interfacial bonding with matrix materials, resulting in improved composite performance and durability.

Hybrid fabric constructions combining carbon fibers with other high-performance fibers create materials with tailored properties for specific applications. These hybrid approaches enable optimization of strength, stiffness, impact resistance, and electrical properties within single fabric structures. The development of recyclable carbon fabric systems addresses environmental concerns while maintaining performance advantages.

Manufacturing Process Evolution

Automated manufacturing processes including automated fiber placement (AFP) and automated tape laying (ATL) are revolutionizing carbon fabric component production. These technologies enable consistent quality, reduced labor costs, and complex geometry capabilities that expand application possibilities. Digital manufacturing techniques allow for mass customization and rapid prototyping of carbon fabric components.

Advanced curing techniques such as out-of-autoclave processing and electron beam curing reduce manufacturing costs while maintaining quality standards. These innovations make carbon fabric technology accessible to a broader range of applications and industries. Integration of sensors and smart materials into carbon fabric structures enables real-time monitoring and adaptive performance capabilities.

FAQ

What makes carbon fabric superior to traditional materials for lightweight applications

Carbon fabric offers an exceptional strength-to-weight ratio that significantly exceeds traditional materials like steel or aluminum. With tensile strengths reaching 4,000-7,000 MPa while weighing 75% less than steel, carbon fabric enables engineers to design components that meet stringent load requirements without weight penalties. Additionally, the corrosion immunity and extended service life of carbon fabric eliminate maintenance concerns associated with metallic materials, providing long-term performance advantages in demanding applications.

How does the weave pattern affect the performance of carbon fabric components

Different weave patterns optimize carbon fabric performance for specific applications. Plain weave provides excellent stability and uniform properties in both directions, making it ideal for general structural applications. Twill weave offers superior drapeability for complex shapes while reducing stress concentrations, improving fatigue life. Satin weave delivers higher fiber volume fractions and improved surface finish for critical load-bearing components. The selection of appropriate weave patterns allows engineers to tailor material properties to specific loading conditions and manufacturing requirements.

What are the main cost considerations when implementing carbon fabric in structural designs

While carbon fabric typically has higher initial material costs compared to traditional alternatives, the total lifecycle cost often favors carbon fabric implementation. The exceptional durability eliminates recurring maintenance and replacement costs, while weight reduction provides operational savings through reduced fuel consumption in transportation applications. The near-net-shape manufacturing capability reduces machining requirements and waste, offsetting some material cost premiums. Long-term economic analysis frequently demonstrates superior return on investment despite higher upfront costs.

How does carbon fabric perform in extreme environmental conditions

Carbon fabric exhibits outstanding performance across extreme environmental conditions, maintaining structural properties from cryogenic temperatures to elevated temperatures exceeding 200°C. The complete immunity to electrochemical corrosion ensures reliable performance in marine, chemical, and industrial environments that rapidly degrade conventional materials. The low coefficient of thermal expansion minimizes thermal stresses during temperature cycling, while excellent chemical resistance provides long-term stability in aggressive chemical environments. These properties make carbon fabric ideal for applications requiring consistent performance under harsh operating conditions.
