Carbon Fiber Fabric Texture

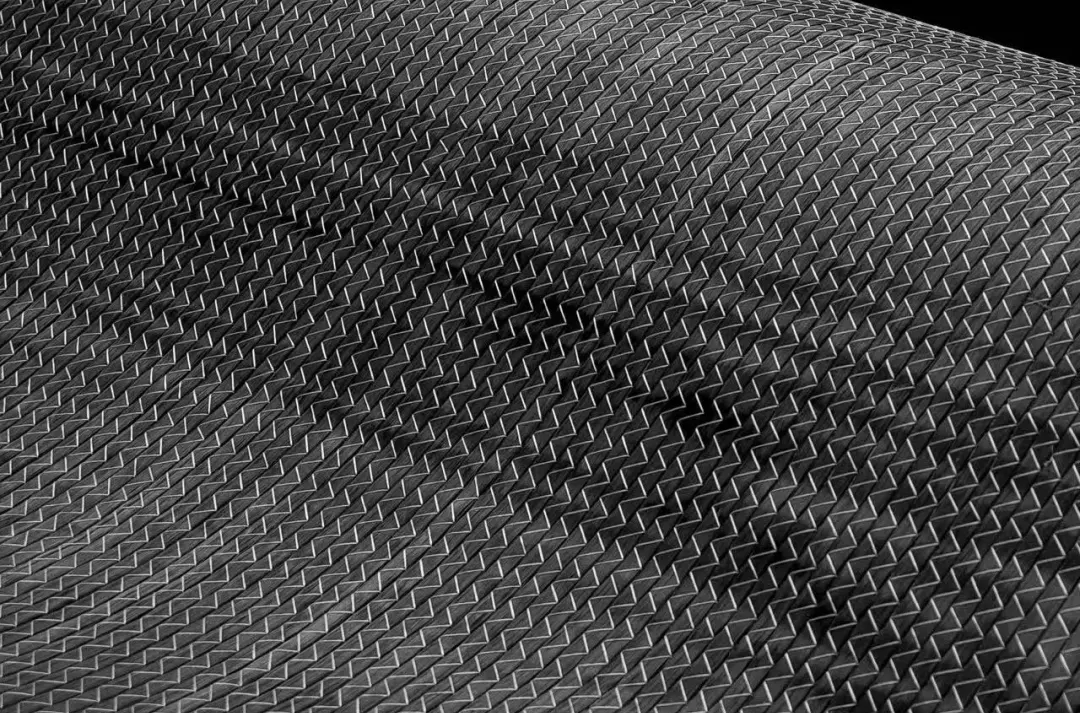

The texture of carbon fiber fabrics does not occur naturally, but is imparted through the critical process of "weaving". The raw materials are carbon fiber tows with a diameter of only a few microns (about 1/10 of a hair), which are first pre-treated (e.g., gluing and shaping) and then interwoven by professional weaving equipment in accordance with a specific pattern, ultimately forming fabrics with different textures.
In terms of weaving principles, the texture of carbon fiber fabrics is mainly determined by the way the "warp yarns" (filament bundles arranged in the longitudinal direction) and "weft yarns" (filament bundles arranged in the transverse direction) are interwoven. Different weaving parameters -- such as the thickness of the filament bundles, the density of the warp and weft yarns, and the angle and frequency of interweaving -- directly affect the morphology of the texture. For example, when warp and weft yarns are interwoven vertically in a 1:1 ratio, the most basic "plain" texture is formed; if multiple warp or weft yarns are interwoven as a group, a more complex "twill" or "satin" texture is presented ". This weaving logic preserves the high-strength properties of the carbon fiber tow itself, while optimizing the overall performance of the fabric through its textured structure.

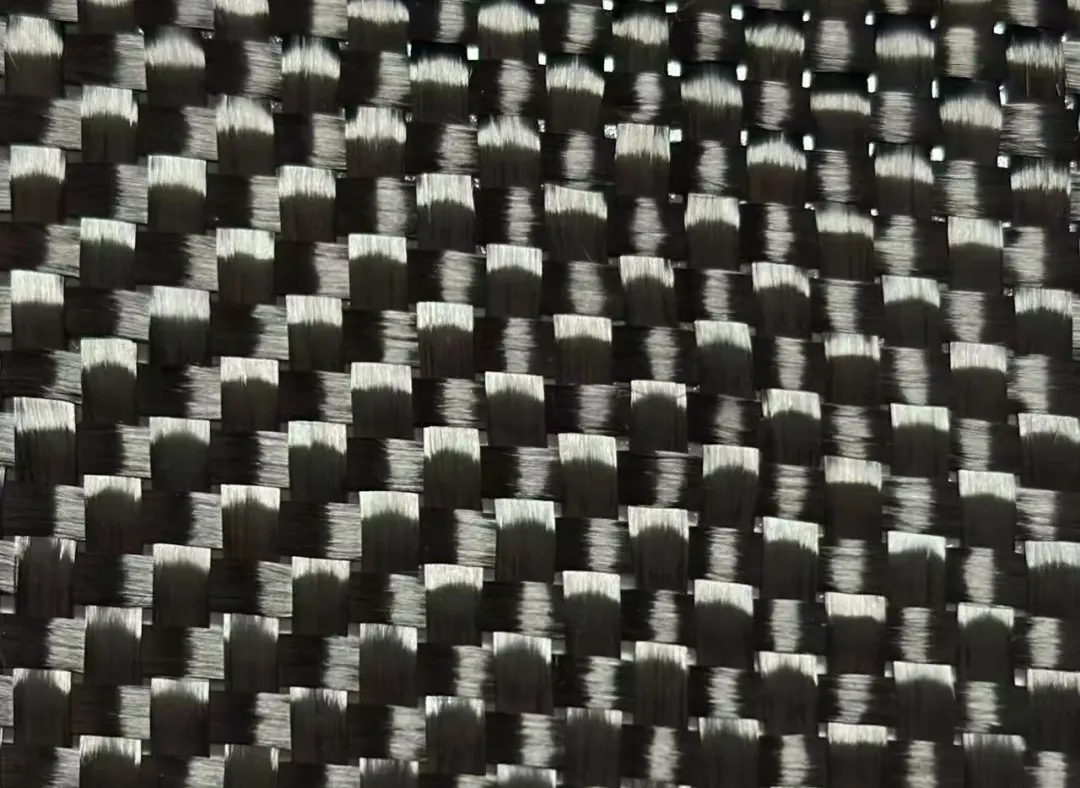

Plain: "balanced and robust"

Plain texture is the most common and basic texture structure of carbon fiber fabrics, which is characterized by the interweaving of warp yarns and weft yarns every other yarn, forming a regular pattern similar to "field grid". From the appearance, plain texture is uniform and delicate, almost no difference between the front and back sides, giving people a simple and sharp visual experience; from the performance point of view, due to the dense weft and warp yarns intertwined points, the structural stability of plain fabrics is very strong, not easy to deform, and the load can be evenly dispersed to the individual bundles of the force, so in the high structural strength requirements of the scene in a wide range - such as aerospace fuselage masks, the use of the fabric is widely used - the most common and basic texture. - This is why they are used in a wide range of applications where structural strength is important - such as fuselage skins in the aerospace industry and stent components in medical devices.
However, plain textures also have their limitations: dense interwoven points can lead to slightly less flexible fabrics that tend to "crease" when bent, making them less suitable for products that require frequent bending.

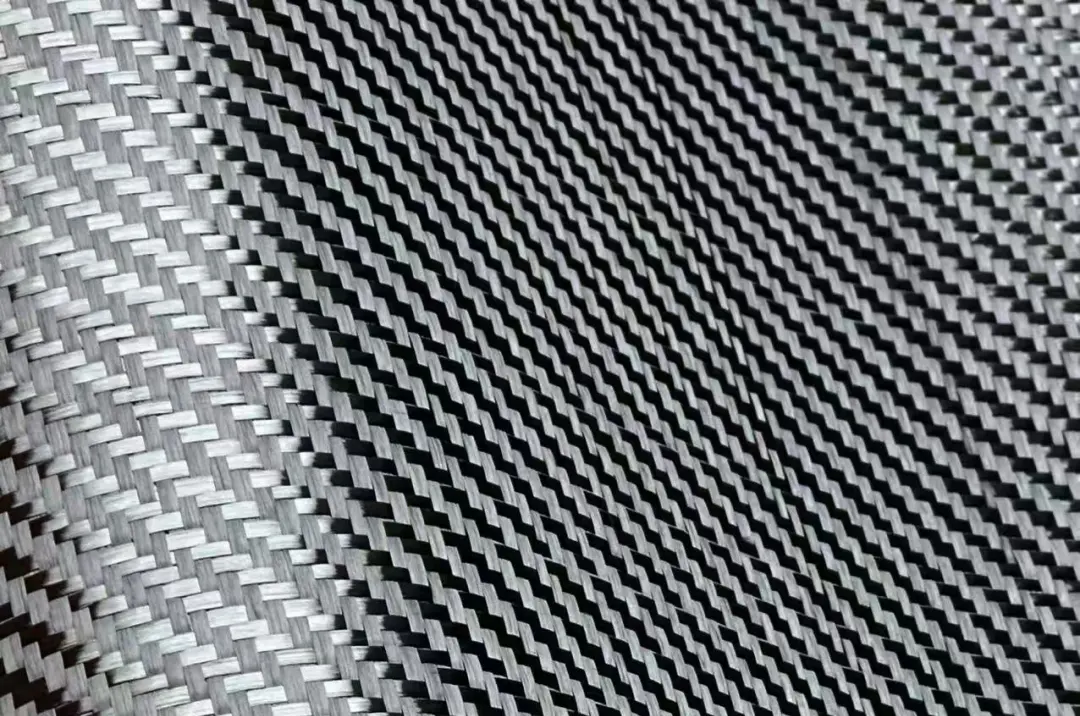

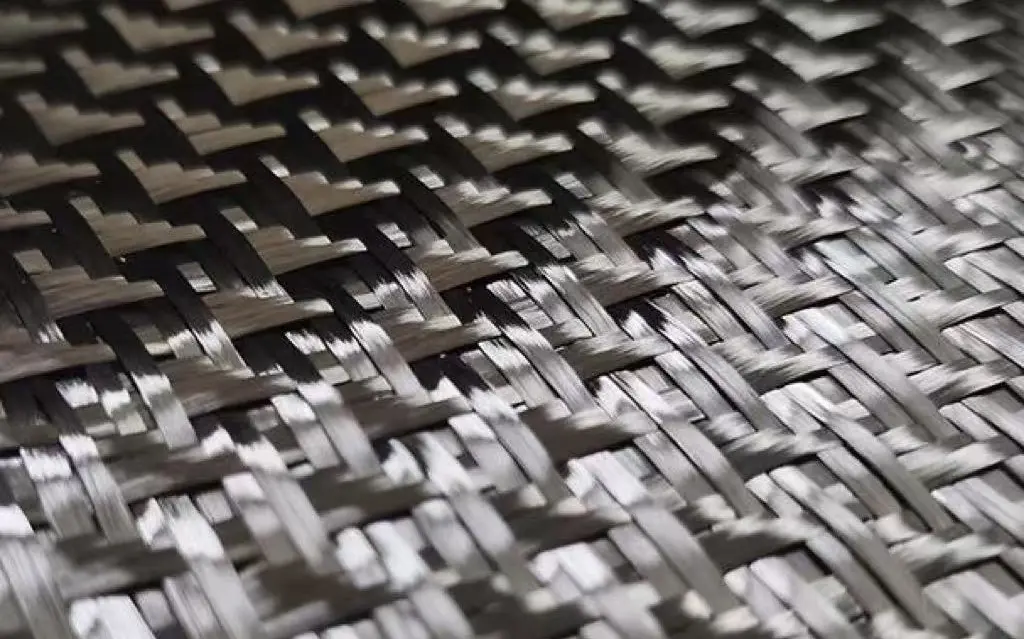

Twill: "Balanced Utility"

Twill textures are more flexible than flat textures: warp yarns are woven across two or more weft yarns and then intertwined with the weft yarns to form a continuous "twill" pattern (commonly 30°, 45°, 60°, etc.). The most intuitive feature of this texture is the visually obvious directionality. The twill pattern will give the fabric a sense of flow, which is more design-oriented than a plain texture - for example, the carbon fiber body of a high-end sports car, or the decorative panels of a luxury luggage, many of which choose a twill texture to enhance the appearance of the texture.
In terms of performance, the advantage of twill fabrics lies in "balance": compared to plain weave, there are fewer interweaving points and more freedom in the filament bundles, so flexibility is greatly improved and it is not easy to break when bending; at the same time, the twill structure ensures the strength of the fabric in many directions, especially in the anti-stretching and impact resistance performance, which makes it more suitable for situations that need to take care of both This makes it more suitable than plain fabrics for scenarios that require a balance between strength and toughness, such as bicycle frames and ski skis in sports equipment.

Satin Fabrics: "High Intensity Pie"

Satin is the most complex process and highest value texture type of carbon fiber fabrics. Its weaving logic is: the warp or weft yarns will cross more yarns (usually 3-5) and then intertwine, forming sparse but regular intertwining points, and ultimately presenting a smooth surface similar to "satin", with almost no visible intertwining traces in the texture, and only subtle changes in luster can be observed.
In terms of appearance, satin fabrics have a high degree of surface flatness and a soft matte sheen when exposed to light, giving them a premium look and feel, so they are often used in high-end products with demanding appearance requirements - such as interior panels of luxury yachts, cases of high-end watches, and customized carbon-fiber art installations. From the performance point of view, due to the very few interweaving points, satin fabric tows are almost in a "parallel arrangement" state, which can maximize the high-strength characteristics of the carbon fiber tows themselves, especially the tensile strength in a single direction, which is more advantageous than the plain and twill; at the same time, the smooth surface also reduces the friction between the fabric and other parts, which is suitable for as the surface layer of moving parts of precision machinery.
However, the shortcomings of satin fabrics are also obvious: sparse interweaving points lead to weaker structural stability, lower strength in the direction perpendicular to the filament bundles, and the production process is complex, and the cost is much higher than that of plain weave and twill.

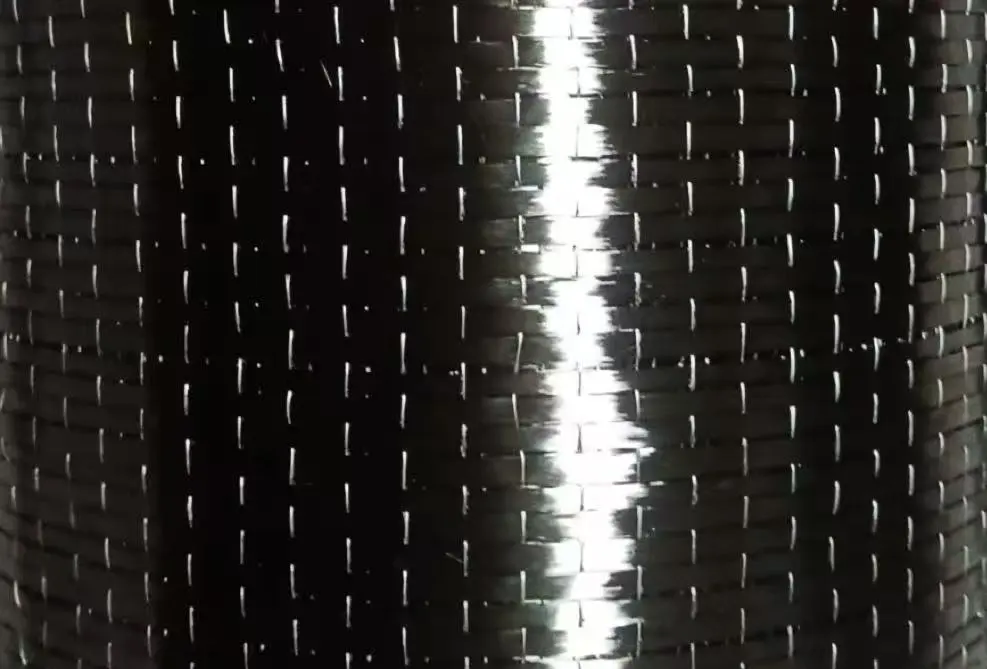

Unidirectional Cloth (UD): "Directional High Intensity Pie"

Unidirectional fabrics are woven in a very different way from twill's "warp and weft" structure, and their core lies in a "clear unidirectional arrangement": more than 90% of the carbon fiber tows are arranged parallel to each other in a single 0° direction, with only a small number of finer denier tows lightly anchored in the weft direction to prevent loosening without assuming the main strength. This prevents loosening and does not provide the main strength. This structure is not traditionally interwoven, but is more akin to an "array of tows with simple binding".
The texture is very regular, the surface shows clear unidirectional parallel grain, and the weft direction of the filament bundles is very fine and difficult to detect, the overall visual simplicity is sharp, rich in industrial texture. In terms of performance, the advantages of unidirectional fabrics are centered on the "directional extreme" - fully focused tensile strength in the 0° direction, which can be 1.5-2 times higher than that of twill fabrics, and can transmit axial stresses without loss. At the same time, it is 15-20% lighter and thinner than twill of the same strength due to fewer interweaving points.
This characteristic makes it particularly suitable for structures subjected to single-directional forces, such as the main beam of wind turbine blades, the reinforcement of rocket arrows or the frames of unmanned aerial vehicles, where it can withstand directional loads while realizing significant weight reductions.

Multi-axial warp knit fabrics (NCF): "Multi-directional equalizers"

Multi-axial fabric is much more complicated than twill, the core of which is "multi-directional layup + overall sewing": firstly, the carbon fiber tows are layered in parallel according to 0°, +45°, -45°, 90° and other directions (commonly 3-5 directions), and the tows in each direction are arranged independently without intertwining with each other, then all the layups are sewn and fixed together with high-strength stitching threads. Then all the layers are sewn together with high strength sewing thread to form a complete fabric, which completely breaks through the limitation of twill "interweaving in both directions".
The visual characteristics of this fabric are distinctive: the surface does not have the diagonal line texture of twill, but rather presents a delicate layered texture, with different directions of the silk bundles overlapping slightly rough but regular, and the stitching threads are distributed on the surface in the form of a fine mesh, which is a unique point of identification.
In terms of performance, Multi-Axial has the advantage of "multi-directional balance": it has excellent strength in the directions of 0°, 90°, ±45°, etc. In particular, its shear resistance is 30%-50% higher than that of twill, and it can resist a variety of complex loads such as tensile, bending, and shear at the same time. It also supports the adjustment of the ratio of filament bundles in each direction as needed, which is suitable for structures with complex multi-directional forces, such as automobile chassis, ship hulls, ski bindings, and bicycle frames, etc. It not only fits complex curved surfaces, but also has excellent multi-directional mechanical properties.

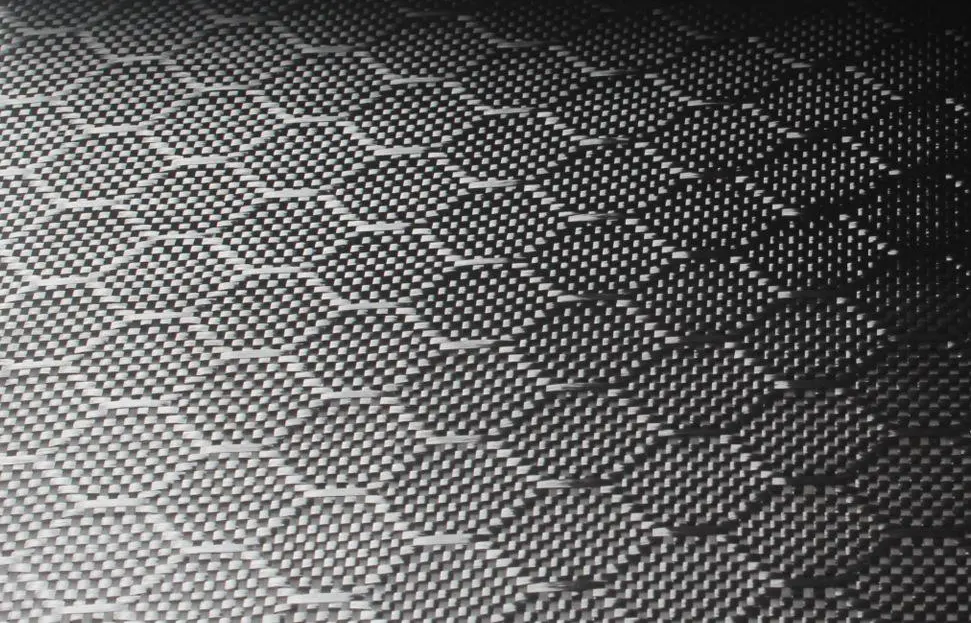

Soccer tattoos: Aesthetics

The soccer pattern adopts a unique "geometric bionic weave", in which carbon fiber tows are woven into a continuous hexagonal or pentagonal combination of honeycomb structures through special equipment, and the units bite into each other, which is completely different from the logic of the twill's "warp and weft intertwining". Its visual recognition is extremely high: the surface is covered with regular hexagons, sharp edges, strong sense of three-dimensionality, and when the light shines, the angles are clearly defined, presenting a strong contrast between light and darkness, which is more design tension and sense of technology than twill.
In terms of performance, the soccer ball pattern combines both value and basic performance: the hexagonal structure can disperse stress evenly, and the deformation resistance is better than that of the plain pattern; the high weaving density makes the filament bundle gap small, and the abrasion resistance is better than that of twill, and it is resistant to slight scratches. Therefore, it is especially suitable for products that prioritize appearance and require daily durability, such as high-end cell phone cases, sports equipment, luxury bag panels and smart home casings, etc. It not only enhances fashion, but also meets the demand for consumer-grade strength.
